Petroleum Testing Equipment
Get a QuotePetroleum testing is most commonly used in the petroleum industry to test products, product components and petroleum byproducts of crude oil, fuel, natural gas, shale oil, and upstream oil and gas. Instruments exist to test all aspects of petroleum — viscosity, flash point, ability to reduce friction, and different measurements of physical properties, purity, behavior and stability.
Petroleum testing is also used for wax-based products, food product testing and environmental monitoring of petroleum in soil and water.
What instruments are used in petroleum testing? Petroleum instruments include flash point testers, distillation equipment, vapor pressure analyzers, oxidation stability analyzers, trace metals analyzers, octane number analyzers, water content meters, density meters and viscometers — hundreds of tests, including ASTM and ISO protocols.
Contact us for your requirement, we will help you find your best choice.
Our Product Range

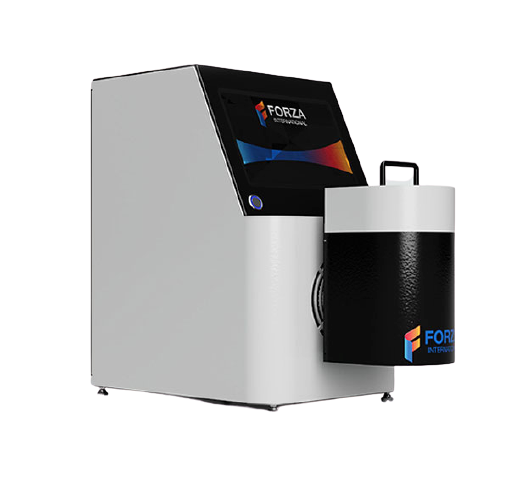

Apparatus for Pour Point of Petroleum Products
Forza FLOW-D97 Single Position Automated Pour Point Analyzer (Automated Tilting). Conforms to method ASTM D97.
Standards & Key Features
Applicable Standards: ASTM D 97, ASTM D 2386
FLOW-D97 is a Single Position Automated Pour Point Analyzer conforming to method ASTM D97 by automated tilting. Movement of the sample is detected by a non-contact sensor; if movement is not detected, the bath is lowered to the next lower temperature to repeat the test. All operations are controlled via a 10″ Windows touch panel, which displays sample, bath, and pour point result temperature. Test data can be exported to a flash drive or printed via an external printer, and the software logs the complete testing history.
- Engineered by experts with 25+ years developing cold property analyzers for petroleum laboratories
- State of the art Stirling cryocooler technology
- High resolution, Windows-based 10″ touchscreen
- Very compact — only 12″ wide
- 2-year warranty

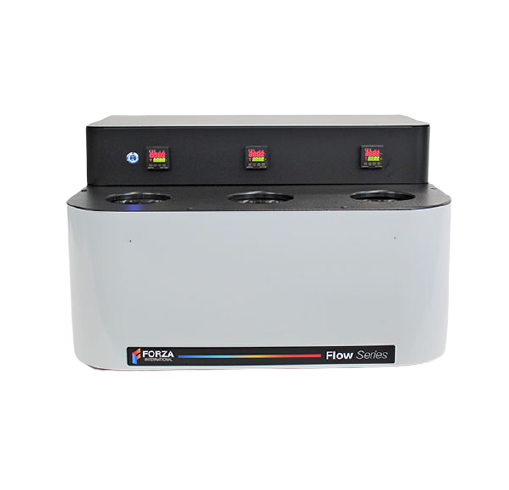

Apparatus for Cold Flow Properties Analysis (Dry)
Model CPC-D97-L-X: Manual Aluminium Block (Dry) apparatus for Cloud Point, Pour Point and CFPP of petroleum products.
Standards & Key Features
Applicable Standards: ASTM D97, ASTM D2500, ASTM D6371 and IP 309
Forza CPC-D97-B-X is an optional 2, 3 and 4 position refrigerated apparatus (Dry Bath) for cold flow properties analysis — Cloud Point, Pour Point and CFPP — conforming to methods ASTM D97, ASTM D2500 and ASTM D6371.
- 0, -18, -33, -51 and -69°C temperature positions — custom configured
- 4 sample capacities in each position
- Aluminium block (dry bath)
- Compact — bench top / floor models
- Digital temperature controller, 0.1°C resolution
- CFC-free refrigerant
Apparatus for Cold Flow Properties Analysis (Liquid)
Model CPC-D97-L-X: Manual Liquid apparatus for Cloud Point, Pour Point and CFPP of petroleum products.
Standards & Key Features
Applicable Standards: ASTM D97, ASTM D2500, ASTM D6371 and IP 309
Forza CPC-D97-B-X is an optional 2, 3 and 4 position refrigerated liquid-bath apparatus for cold flow properties analysis — Cloud Point, Pour Point and CFPP — conforming to methods ASTM D97, ASTM D2500 and ASTM D6371.
- 0, -18, -33, -51 and -69°C temperature positions — custom configured
- 4 sample capacities in each position
- Compact — bench top / floor models
- Digital temperature controller, 0.1°C resolution
Apparatus for Freezing Point of Aviation Fuels
Model FZ-D2386: Manual low temperature (-70°C) liquid bath for determining the temperature below which solid hydrocarbon crystals may form in aviation turbine fuels and aviation gasoline. Conforms to method ASTM D2386.
Standards & Key Features
Applicable Standards: ASTM D2386
FLOW-D2386 is a single-position automated freeze point analyzer offering accurate, precise freezing point determination exactly per ASTM D2386, a globally referenced dispute method. The unit has optical detection of freezing point and an automated stirring mechanism for the wound wire stirrer as per the D2386 method. Test data can be exported to flash drive or printed via an external printer, with the software logging complete testing history.
- Engineered by experts with 25+ years developing cold property analyzers for petroleum laboratories
- State of the art Stirling cryocooler technology
- High resolution, Windows-based 10″ touchscreen
- Very compact — only 12″ wide

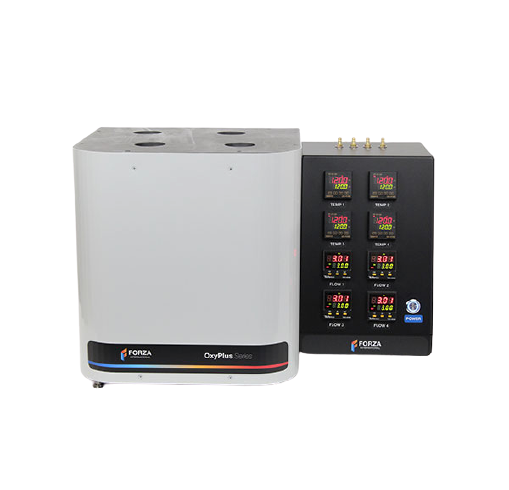

Apparatus (Dry) for Oxidation Stability of Distillate Fuel Oil
Manual individual heated tube apparatus (dry) for oxidation stability of distillate fuel oil (accelerated method). 4, 6 and 8 position models equipped with Rotameter/MFC available.
Standards & Key Features
Applicable Standards: ASTM D943, D2893, D2274, D4871, D4636, D5846, D6594, D4310, DKA A&B — CEC L 48, S200
The FORZA OxiPlus is a high temperature individual tube heater oxidation apparatus specially designed to perform oxidation stability testing of fuels and lubricants. It offers the option of a Mass Flow Controller arrangement alongside the traditional float-in-tube flow meter (Rotameter), which provides a rock-steady flow rate compared to rotameters that need daily tweaking. The individual tube heater apparatus eliminates the need for expensive, hazardous bath mediums — improving lab safety and allowing each test position to run at the same or a different temperature as desired.
- Each position can operate at the same temperature or independently at different temperatures, with tight differential control between positions

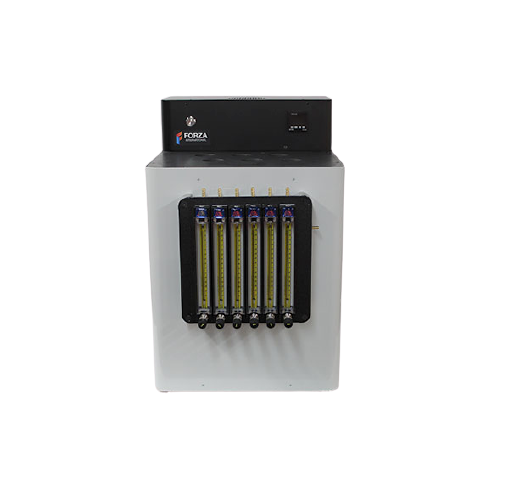

Apparatus (Liquid) for Oxidation Stability of Distillate Fuel Oil
Manual liquid bath for oxidation stability of distillate fuel oil (accelerated method). 4, 6, 8, 12 and 15 position models available.
Standards & Key Features
Applicable Standards: ASTM D943, D2893, D2274, D4871, D4636, D5846, D6594, D4310, DKA A&B — CEC L 48, S200
The FORZA OxiPlus is a high temperature oxidation apparatus specially designed to perform oxidation stability testing of fuels and lubricants, with the option of a Mass Flow Controller for a rock-steady flow rate versus a traditional rotameter.
- Agitated liquid bath from 4 to 30 test positions
- Digital indicating PID temperature control maintains ±0.5°C stability
- Temperature range of 40° to 150°C
- Supplied with flow meter (Rotameter) for each test position
- Over-temperature safety cut-off
- Low level safety cut-off switch

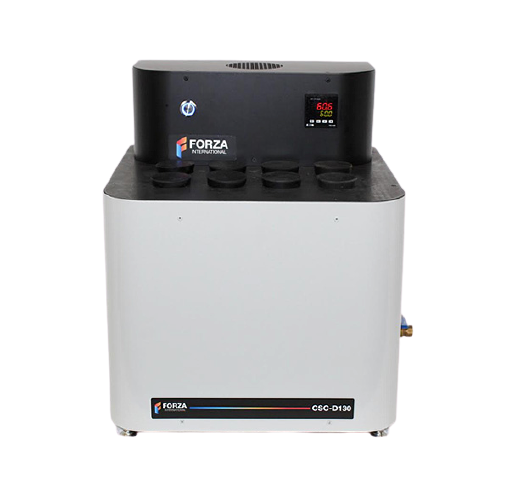

Apparatus for Copper Strip Corrosion Test
Manual stainless steel liquid bath for both pressure vessel and test tube procedures. 8 position model available.
Standards & Key Features
Applicable Standards: ASTM D130 | ASTM D4048
Manual test apparatus for the Copper Strip Corrosion Test, using a stainless steel liquid (oil) bath for both pressure vessel and test tube procedures.
- Stainless steel bath
- Temperature: min 35°C & max 110°C
- Bath volume: approx. from 18 litres
- Bath stability of ±0.5°C
- Digital temperature controller with 0.1°C resolution
- Float switch for low bath fluid level safety cut-off
- Lid cover with holes for test tubes and pressure vessels
Apparatus for Silver Strip Corrosion Test
Apparatus for the evaluation of corrosiveness to silver of aviation turbine fuels — Silver Strip Method.
Standards & Key Features
Applicable Standards: Forza SLC-IP227-L-6
Manual test apparatus for the Silver Strip Corrosion Test — IP227 and related methods, using a stainless steel liquid (oil) bath.
- Stainless steel bath
- Temperature: min 35°C & max 110°C
- Bath volume: approx. from 18 litres
- Bath stability of ±0.5°C
- Digital temperature controller with 0.1°C resolution
- Float switch for low bath fluid level safety cut-off
- Lid cover with holes for test tubes and pressure vessels

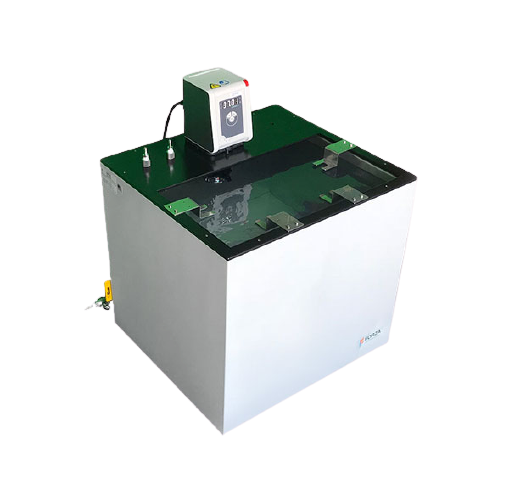

Apparatus for Vapor Pressure of Petroleum Products (Reid Method)
Manual stainless steel liquid bath for the Reid Vapor Pressure test. 4 position model available.

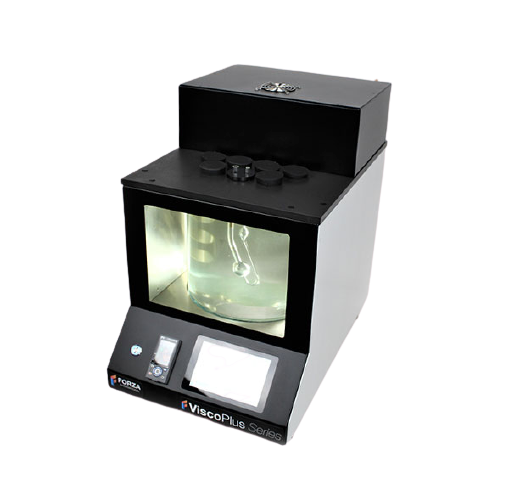

Apparatus for Kinematic Viscosity (Manual, High Temperature)
Manual high (40°C to 150°C) and low (-20°C to -65°C) temperature liquid bath for determining the kinematic viscosity of liquid petroleum products, both transparent and opaque.
Standards & Key Features
Applicable Standards: ASTM D445
The FORZA HTKV-D445-L-4 is a high temperature, seven test-position bath specially designed to perform kinematic viscosity tests between +40°C and +150°C, compliant with ASTM D445. Advanced software significantly reduces the pain points of running viscosity tests, with a 7-inch high-resolution touchscreen and integrated timers.
- Windows-based, high-resolution 7-inch touch panel with integrated timers
- Fully ASTM D445 compliant software
- Digital microprocessor precise temperature control, accuracy of ±0.01°C
- Viscometer tracking by serial number
- Viscometer calibration constant database

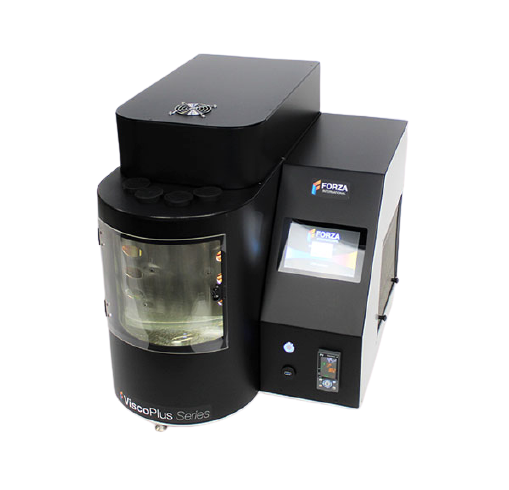

Apparatus for Kinematic Viscosity (Manual, Low Temperature)
Manual low (-20°C / -65°C) temperature liquid bath for determining the kinematic viscosity of liquid petroleum products, both transparent and opaque.
Standards & Key Features
Applicable Standards: ASTM D445
The FORZA LTKV-D445-L-4 is a low temperature, four test-position bath for kinematic viscosity tests between +15°C and -25°C. The ULTKV-D445-L-4 variant is an ultra-low temperature four-position bath for tests between +15°C and -69°C, and can also be used for ASTM D2386 manual freezing point testing with an additional stirring module.
- Windows-based, high-resolution 7-inch touch panel with integrated timers
- Fully ASTM D445 compliant software
- Digital microprocessor precise temperature control, accuracy of ±0.01°C
- Viscometer tracking by serial number
- Viscometer calibration constant database

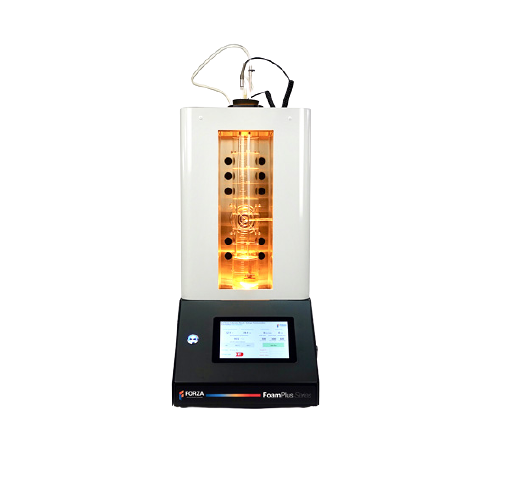

Apparatus (Air Bath Module) for Foaming Characteristics of Lubricating Oils
Individual air bath module for measuring the foaming tendencies of lubricating oils at +24°C, 93.5°C and +150°C. Each module is equipped with Mass Flow Controller and Totalizer for improved consistency.
Standards & Key Features
Applicable Standards: ASTM D892 & ASTM D6082
An efficient modular apparatus — a one-test-position unit fully equipped to run the test using air as the bath medium, eliminating the unsafe, messy liquid bath medium of traditional baths and any risk of cross-contamination from a silicone oil bath. The sturdy, well-insulated cabinet has a high-temperature scratch-proof glass viewing window. A microprocessor-based touch panel interface and mass flow controller deliver more accurate, repeatable air delivery than rotameters, with a mass flow based totalizer to monitor exit air as recommended by the test method.
- Complies with ASTM D892, D6082 and related methods
- Air foam bath modules for tests at 24°C, 93.5°C or 150°C
- Air bath medium eliminates traditional liquid bath mediums and cross-contamination risk

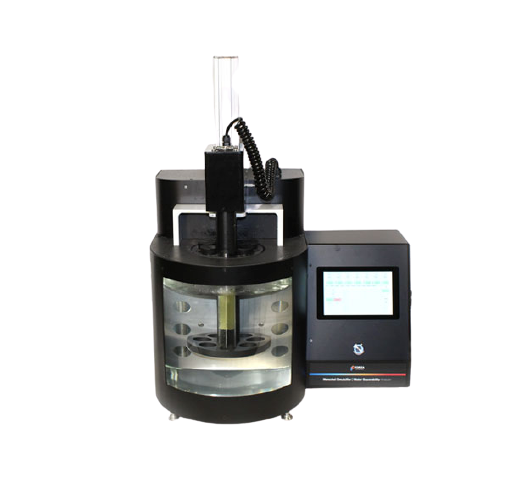

Apparatus for Water Separability of Petroleum Oils and Synthetic Fluids
Seven test-position apparatus meeting the full requirements of ASTM D1401 and related water separability (demulsability) methods.
Standards & Key Features
Applicable Standards: ASTM D1401 and related methods
The sample stirrer motor's horizontal position is fixed while vertical elevating motion is allowed, enabling repeatable, concentric positioning with sample tubes. A special turntable with lock-pin mechanism enhances concentricity, and a minimized motor shaft length prevents run-out. The buffed, polished paddle is machined from a single piece of stainless stock (not welded), eliminating crevice contamination. The unit is protected by a low liquid level safety float switch and a high temperature limit, and is supplied with 7 pcs of WS-1401-D disposable graduated test tubes.
- Precision sample stirrer motor at 1500±1 rpm, adjustable up to 2500 rpm, unaffected by voltage fluctuations
- Integrated microprocessor-based controller with an intuitive Windows-based colour touch panel display

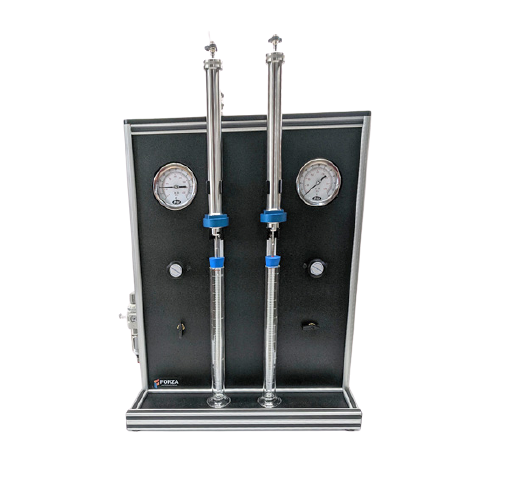

Manual Apparatus for Hydraulic Oil Filterability
Model HFLT-AFNOR-M-2: Manual hydraulic oil filterability apparatus, 2 test-position model available, each position independently controlled. Designed to be compliant with ASTM D8277, AFNOR NEF E48-690, NF E48-691 and ISO 13357.

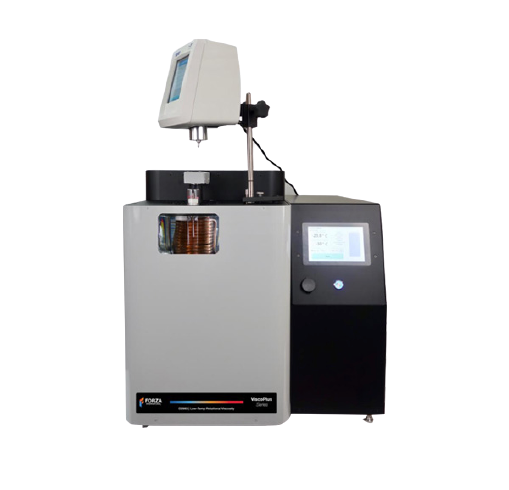

Rotational Viscometer
Programmable liquid bath with a rotational viscometer for measuring low-temperature viscosity of automatic transmission fluids, hydraulic fluids and lubricants.
Standards & Key Features
Applicable Standards: ASTM D2983
Forza Visco Plus series test equipment are software-driven, low temperature viscosity baths compliant with ASTM D2983. The turntable holds 10 test samples; after the 16-hour conditioning time, it is manually rotated until the proper test cell sits under the viscometer, with the spindle connected while the sample remains in the temperature-controlled bath — delivering far superior repeatability than the air chamber procedure.
- Programmable liquid visibility bath
- Operating temperature range from +20° to -40°C (optional -55°C model available)
- Temperature stability better than ±0.1°C

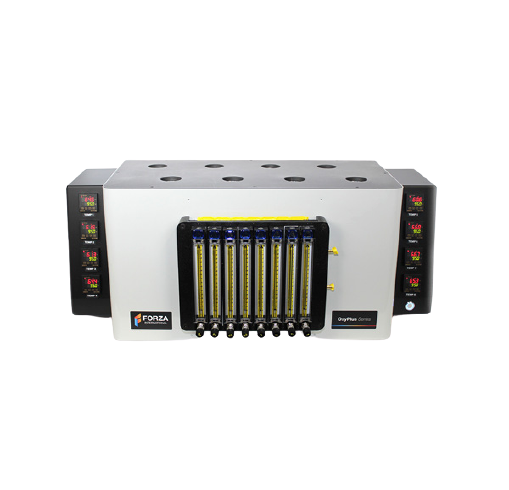

High Temperature Oxidation Stability Testing for ATF and Gear Oil
Manual individual heated tube apparatus (dry) for oxidation stability of ATF and gear oil. 4, 6 and 8 position models equipped with Rotameter/MFC available.
Standards & Key Features
Applicable Standards: ASTM D943, D2893, D2274, D4871, D4636, D5846, D6594, D4310, DKA A&B — CEC L 48 Oxidation, S200 Oxidation
The Mass Flow Controller (MFC) option provides a rock-steady flow rate versus a traditional rotameter, which needs regular tweaking. The individual tube heater apparatus eliminates hazardous bath mediums, improving safety while allowing each position to be controlled independently, saving energy.
- Digital indicating PID temperature control maintains ±0.1°C stability
- Temperature range of 40° to 350°C
- Supplied with Rotameter or Mass Flow Controller for each test position, with over-temperature safety cut-off
- Each position has independent heaters, sensors, insulation, temperature control and high-temperature safety cut-off

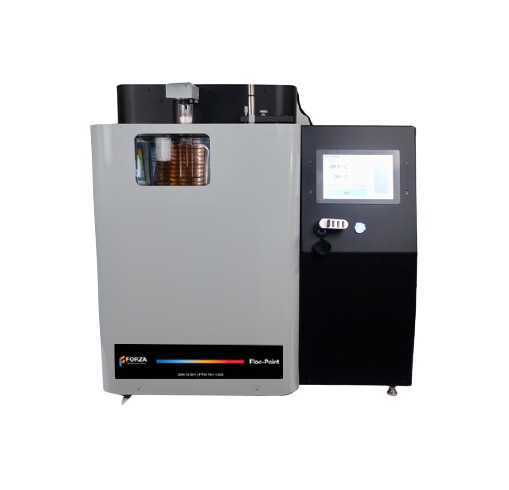

Apparatus for Flock Point Determination of Refrigerating Oils
Mechanically agitated low temperature liquid bath able to accept 9 test tubes as specified by DIN 51 531 for determination of flock point (compatibility) of refrigerants with refrigeration oils. Operating temperature 15°C to -70°C.

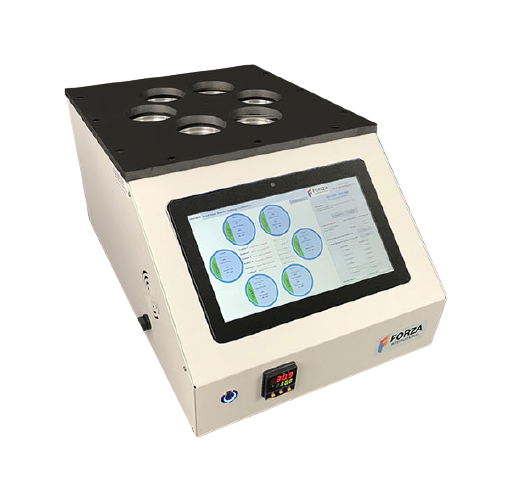

Apparatus for Oxidation Stability of Gasoline by Induction Method
Heated aluminium block apparatus with automatic data acquisition system. 4 and 6 position models available.
Standards & Key Features
Applicable Standards: ASTM D525, ASTM D873, IP 138, ISO 7536, IP 40
The Forza OX-525 performs testing and analysis of fuel samples in compliance with ASTM D525 (Oxidation Stability of Gasolines by the Induction Method). Built around a heated metal block, Forza has engineered the system to hold temperature within ±0.1°C of the set point, with both hardware and software safety features including automatic shut-off when temperature exceeds a set limit.
- Heated metal block — no harmful oils or dangerous steam
- Highly accurate microprocessor-based temperature control to ±0.1°C
- Built-in Data Acquisition System (DAQ) with Windows touchscreen computer and Intel processor
- Built-in hardware and software safety features
